Our strength

My company has more than 30 years experience in production and processing

We have a modern processing center, advanced laser cutting machine blanking, robotic welding production of the main components, using advanced production technology to ensure high precision, high quality and low price of products. It's the preferred product for domestic and foreign users.

Advantages of using Condenser Tube Cleaning System

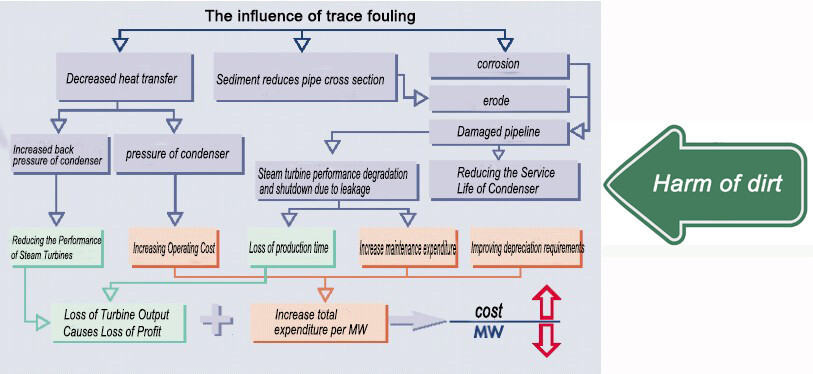

Prevent Heat Exchanger Tube Fouling、Extending the Service Life of Condenser

Energy saving and high efficiency、Increase Suustainability、Reduce Energy Costs、Improve Chiller Efficiency

Fully automatic on-line continuous cleaning，The ball recovery rate is over 98%.

Condenser Tube Cleaning System Introduction

     The automatic cleaning device of condenser produced by our company is based on the standard of electric power industry and adopts advanced production technology.

     The automatic cleaning system of condenser rubber ball is one of the main auxiliary equipment to improve the thermal efficiency of steam turbine cycle. Since the 1970s, many thermal power plants in China and around the world have been widely equipped. This method has also been used in the chemical industry and large central air conditioning coolers.

    Compared with other methods, our products can be used in online continuous cleaning,Without shutdown and load reduction, the heat transfer effect of condenser can be improved,Reduce back pressure of steam turbine, increase power generation, reduce energy consumption and improve operation economy.In addition, the corrosion of cooling pipe is reduced and the service life is prolonged.Especially with the increasing power of the unit,There is an urgent need to save energy and reduce consumption,It improves the economy of generating units.Make condenser tube cleaning system more important.

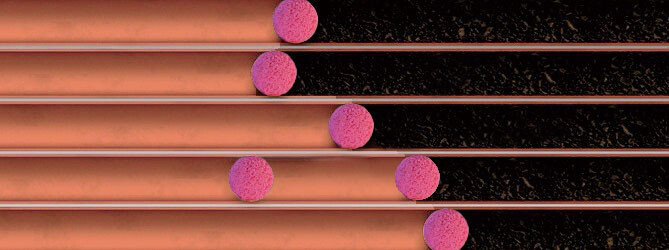

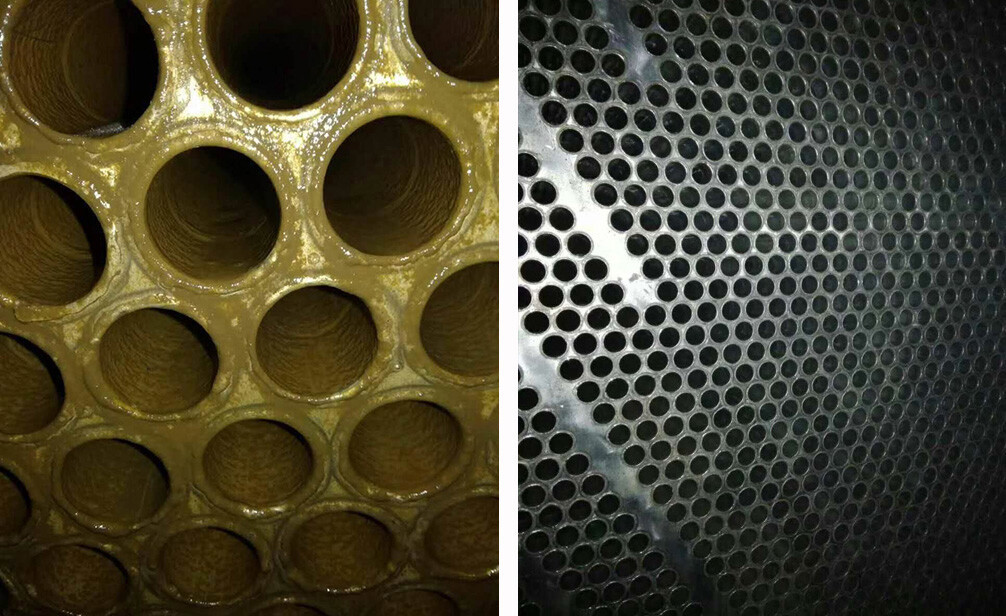

                                             Before Cleaning                                                                                             After Cleaning

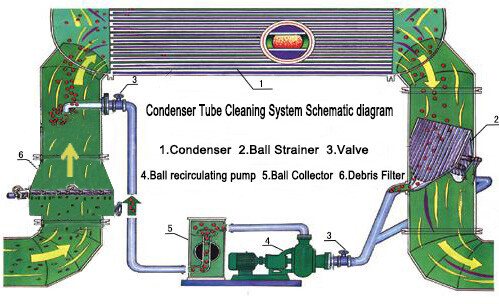

Working Principle of Condenser Tube Cleaning System

     The working principle of the condener tube cleaning system : According to the diameter of the cooling pipe, different specifications of rubber balls are adopted.The rubber ball is put into the system from Ball Collector. The rubber ball is pumped into the cooling water inlet pipe by a ball recirculating pump.Rubber balls flow into condenser water chamber with water,The diffused rubber balls are evenly distributed into the cooling tube,Rubber balls are squeezed,pass and scrub the pipe.Take away the dirt attached to the inner wall of the pipe,diffused into the water stream.The ball strainer on the outlet section of the condenser recovers the rubber balls in the water flow and sucks them out by the Ball recirculating pump and feeds them into ball collector.So repetitive. According to the length of pipeline path, the time for rubber ball to complete a cycle cleaning is about 20-40 seconds,The number of rubber balls put in is about 10% of the total number of single flow tubes on one side. When the equipment runs for 60 minutes, the total number of tubes can be cleaned more than 10 times each.

Components of Condenser Tube Cleaning System

     Condenser tube cleaning system includes: Ball Strainer,Ball Collector,Ball Recirculating Pump,Valve,Electric control cabinet,Three-way valve,Debris Filter,etc. In order to ensure the reliable use of the device,When there is dirt in the circulating water of the condenser,Secondary filters shall be installed on the inlet pipes of condensers, It can block and remove impurities not more than 8mm in cooling water,So as to achieve reliable cleaning operation.

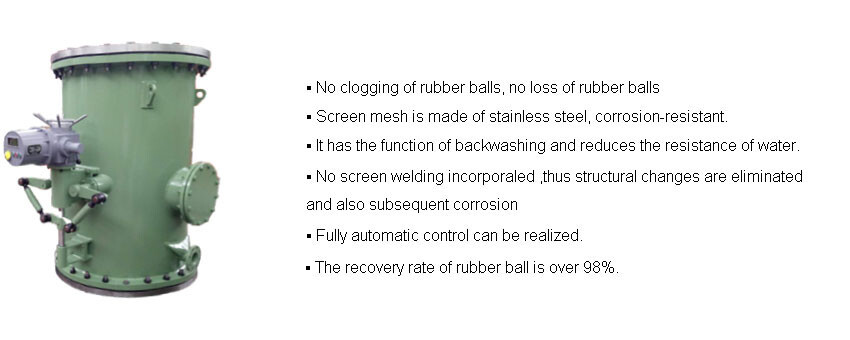

 1. Ball Strainer

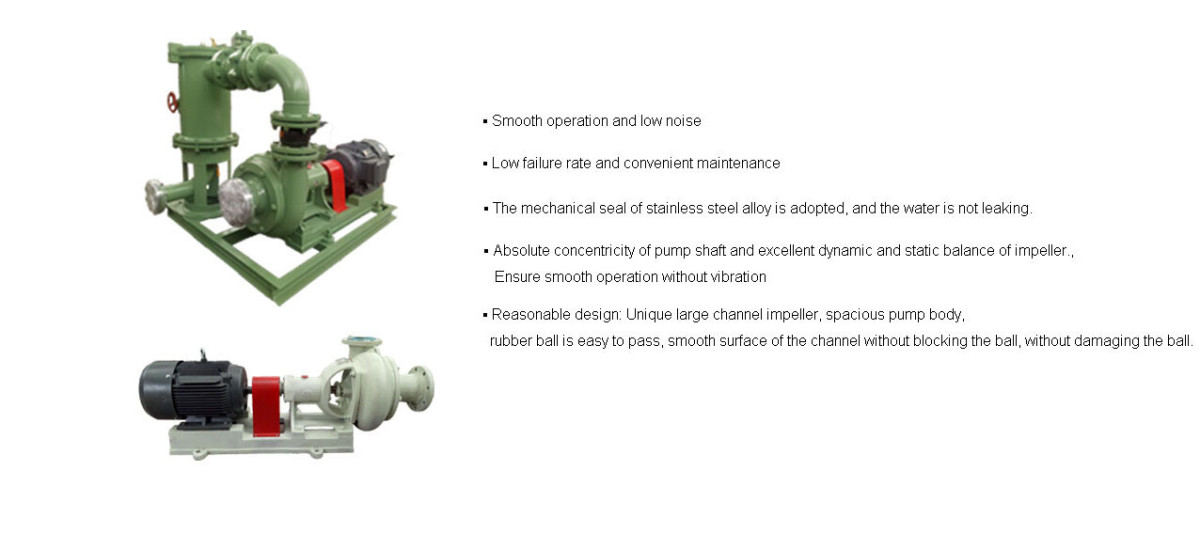

  2.Ball Recirculating Pump

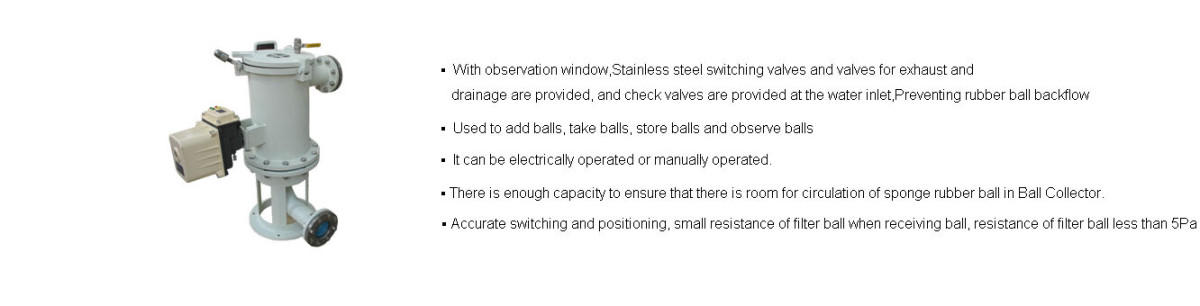

 3.Ball Collector

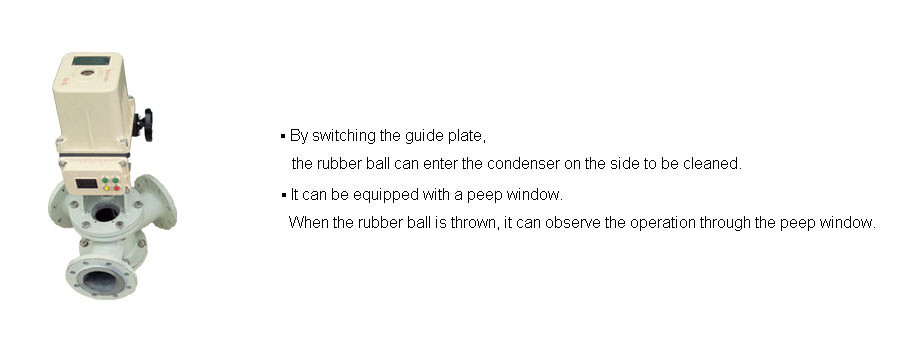

   4.Three-way valve

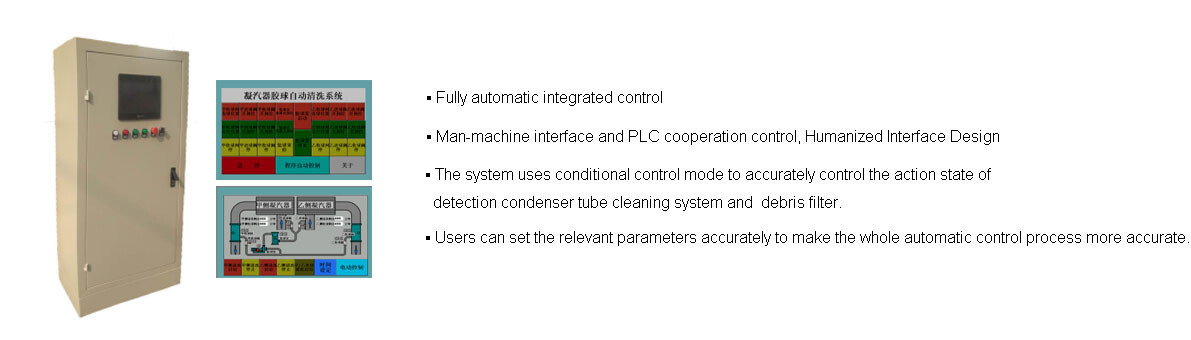

5.Electric control cabinet

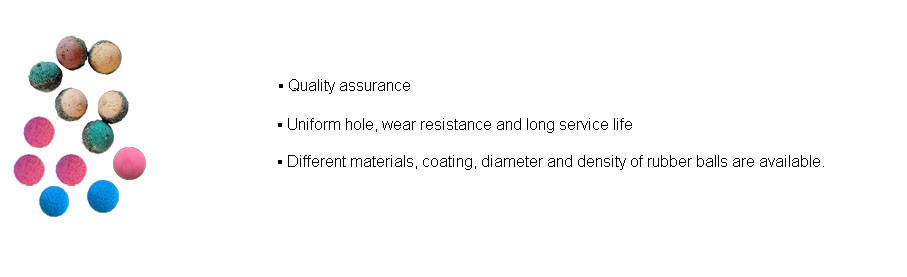

6.Sponge rubber ball

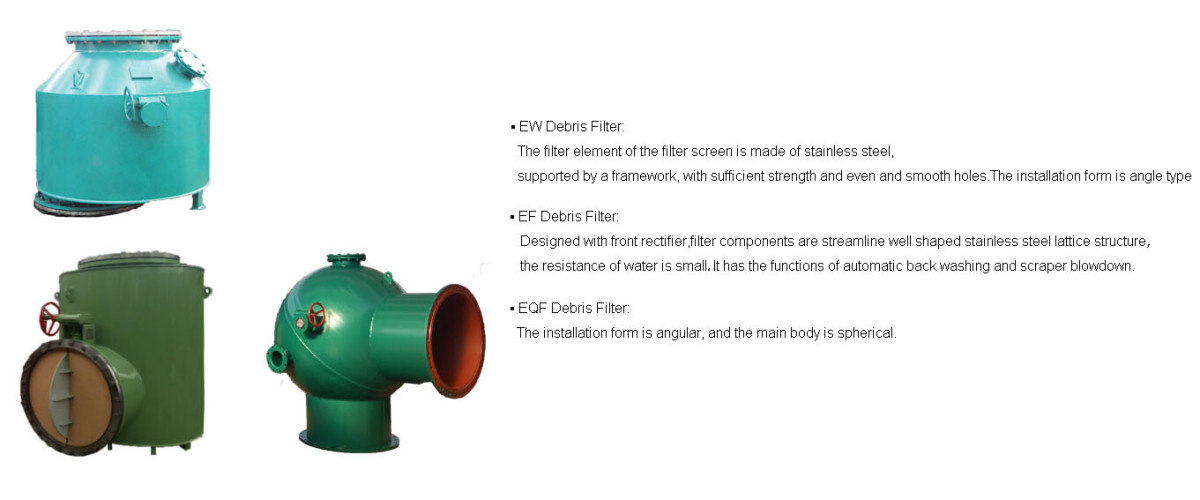

 7.Debris Filter（One of the main equipment of condenser circulating water system）

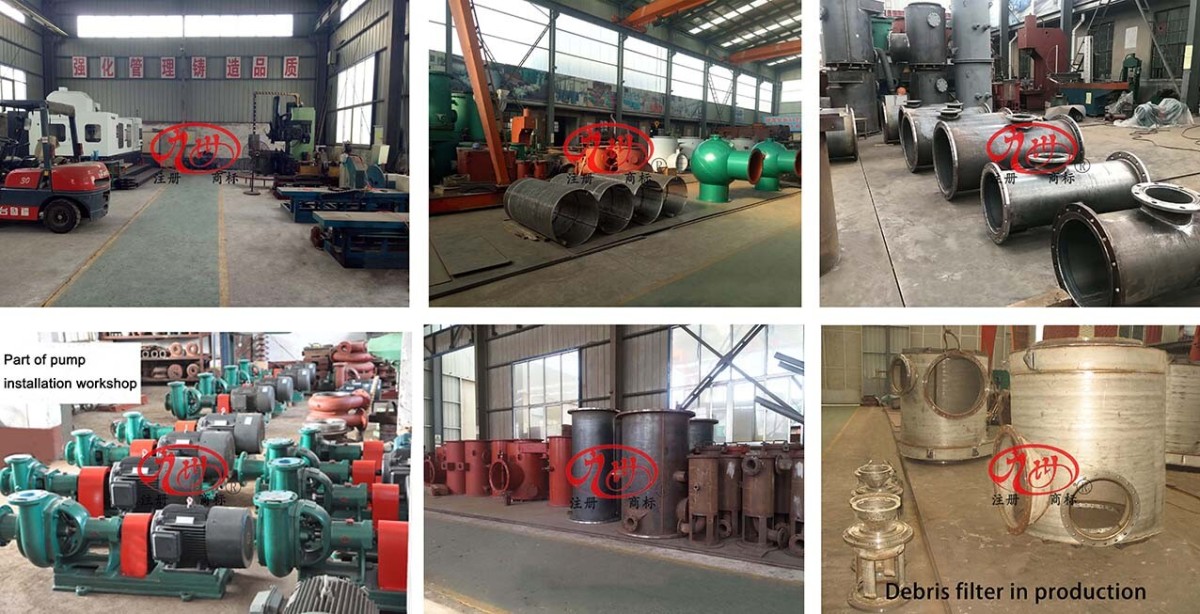

A corner of our rubber ball production workshop

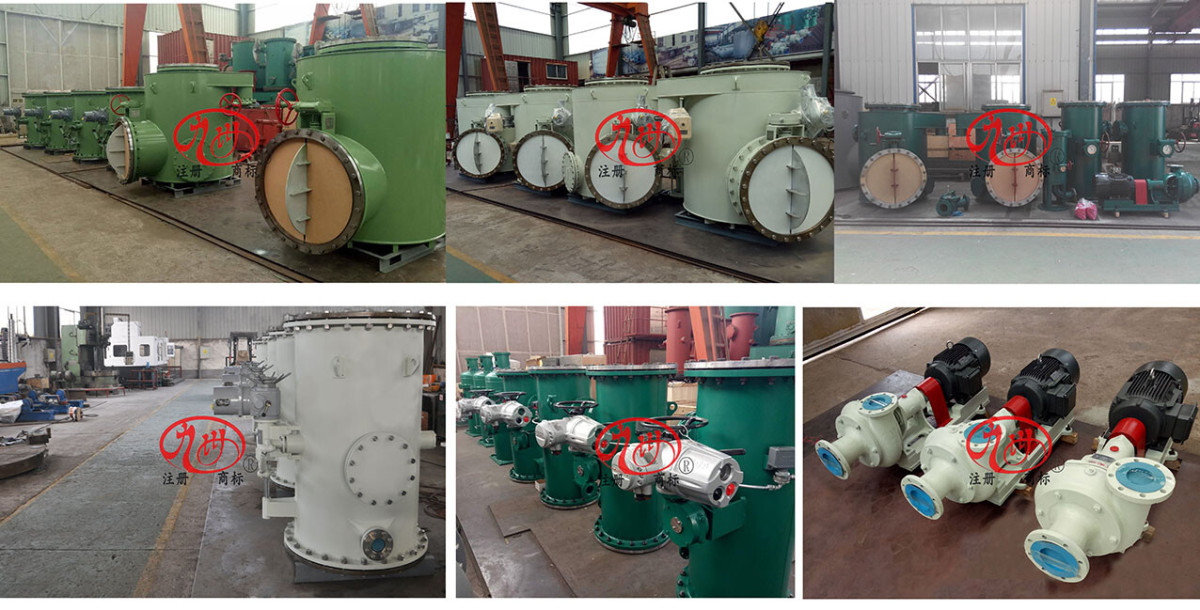

Some Automatic Cleaning Device for Condenser Tube produced by our company
